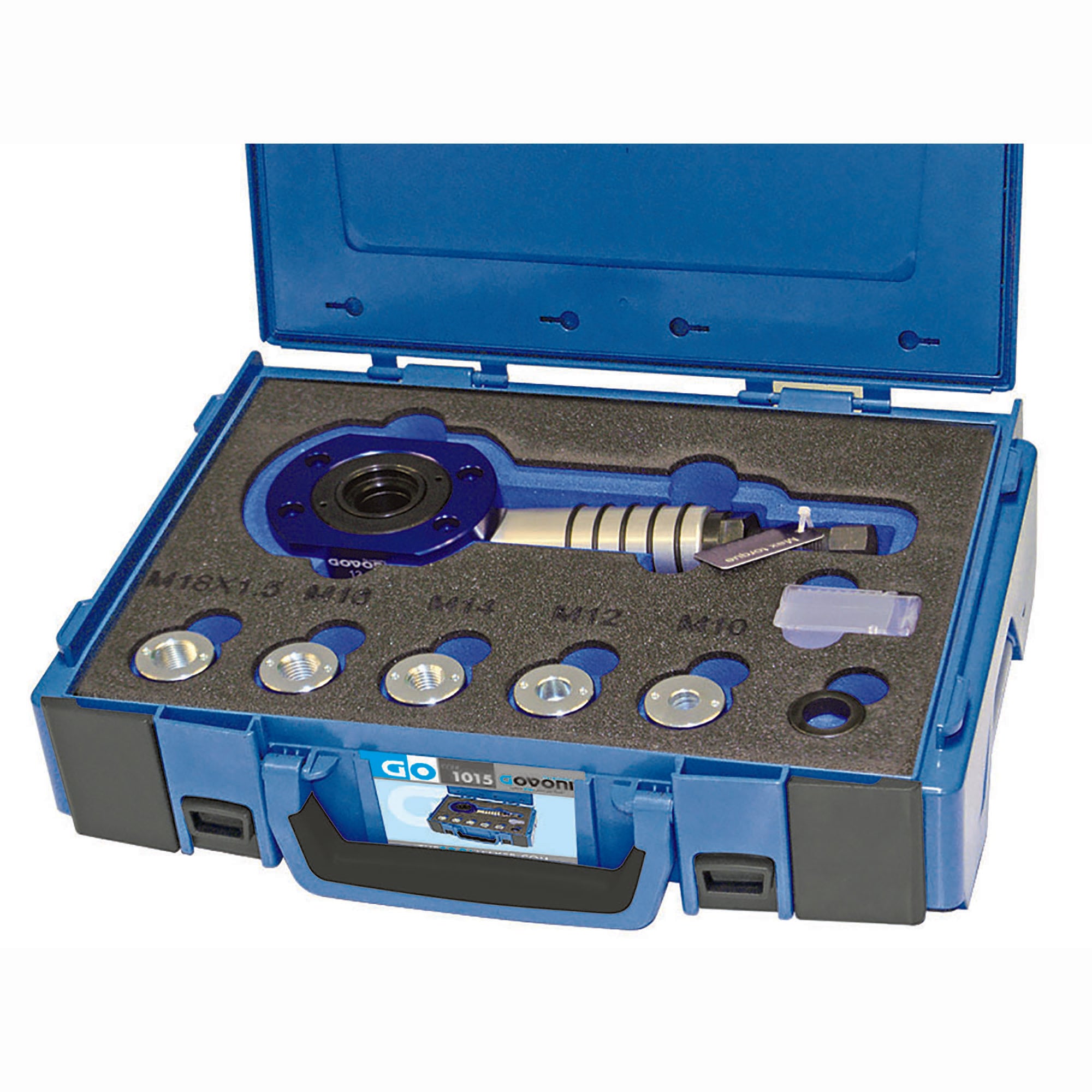

GO1015 - Mechadraulic Cylinder & Adaptor Kit 12 Tonne
Mechadraulic cylinder and adaptor kit designed to deliver high-force extraction and installation across a wide range of workshop applications. Combining hydraulic power with mechanical control, the system provides a compact and efficient solution for loosening tight components, injector removal, and hub installation.
Key Features
- 12 tonne mechadraulic cylinder for high pulling force
- Combines hydraulic force with mechanical control for precision
- Lightweight aluminium construction with high strength

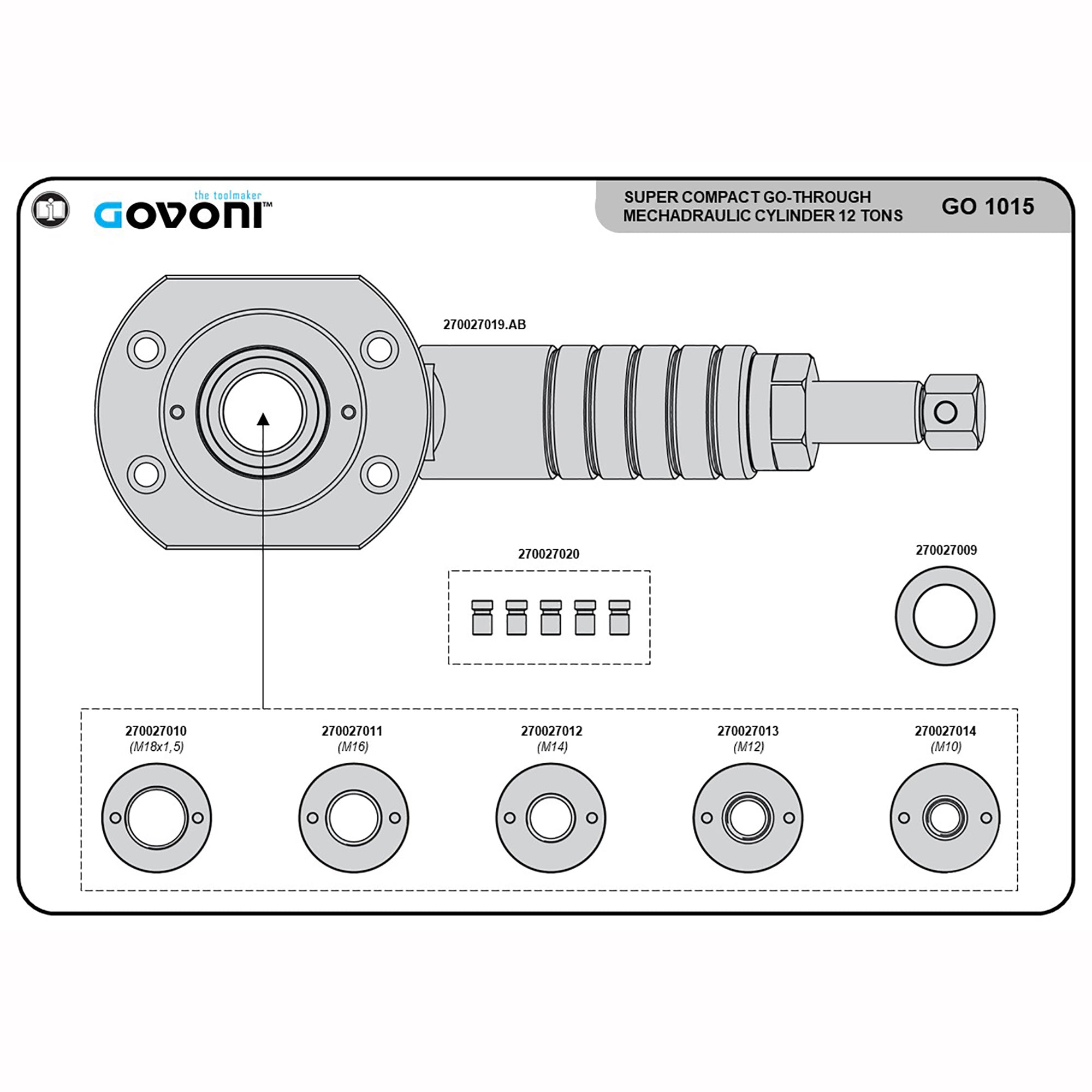

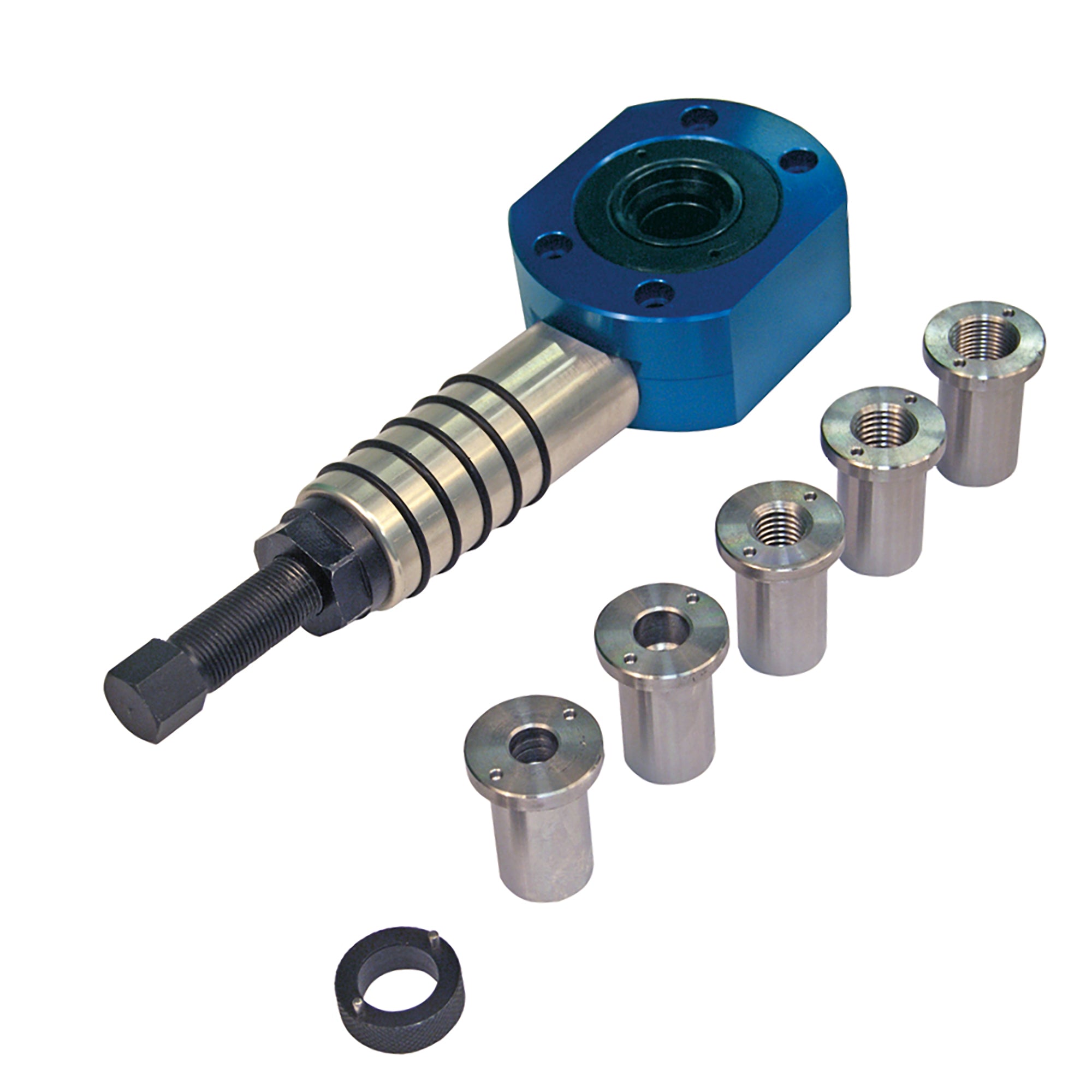

- Includes adaptors (M10, M12, M14, M16, M18) for multiple applications

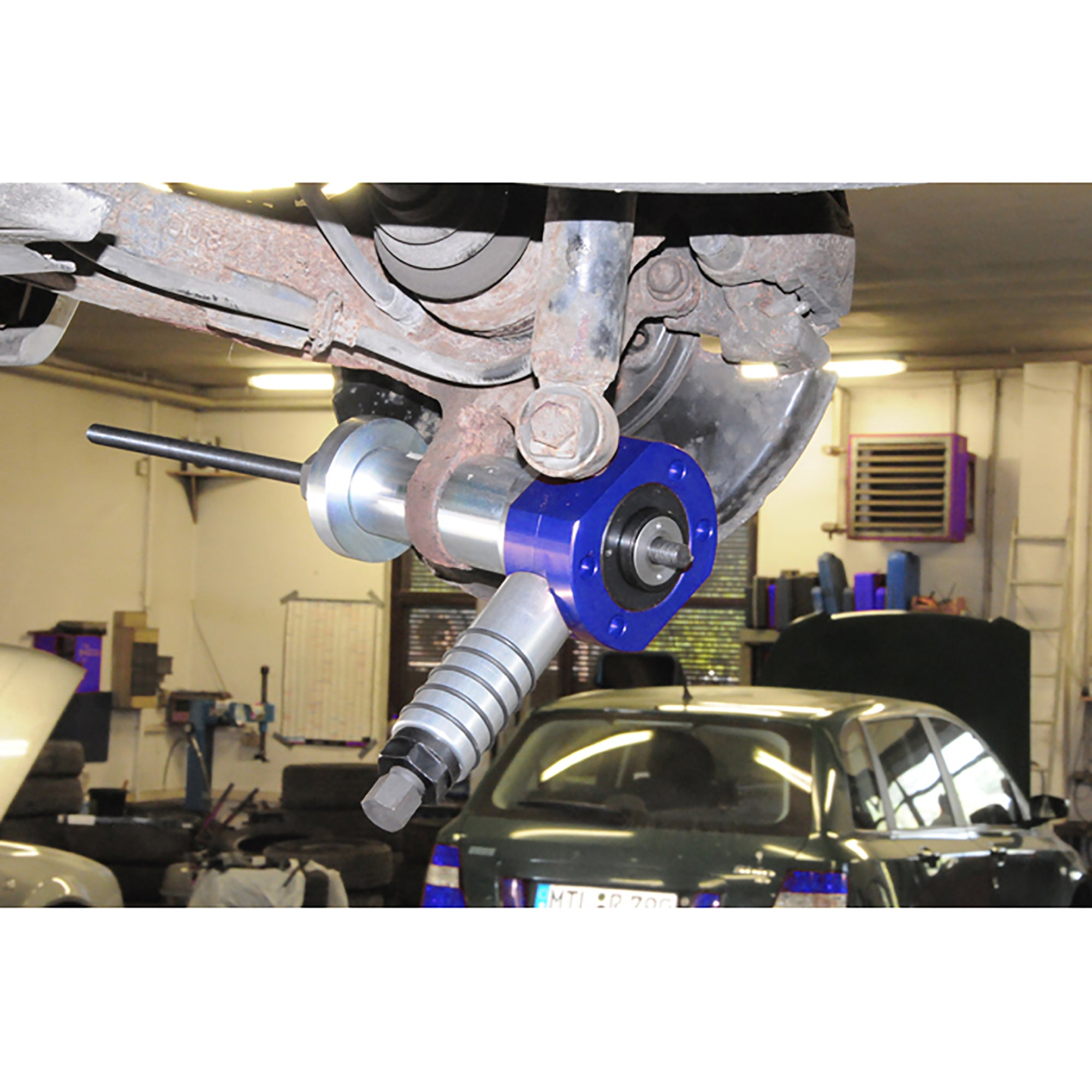

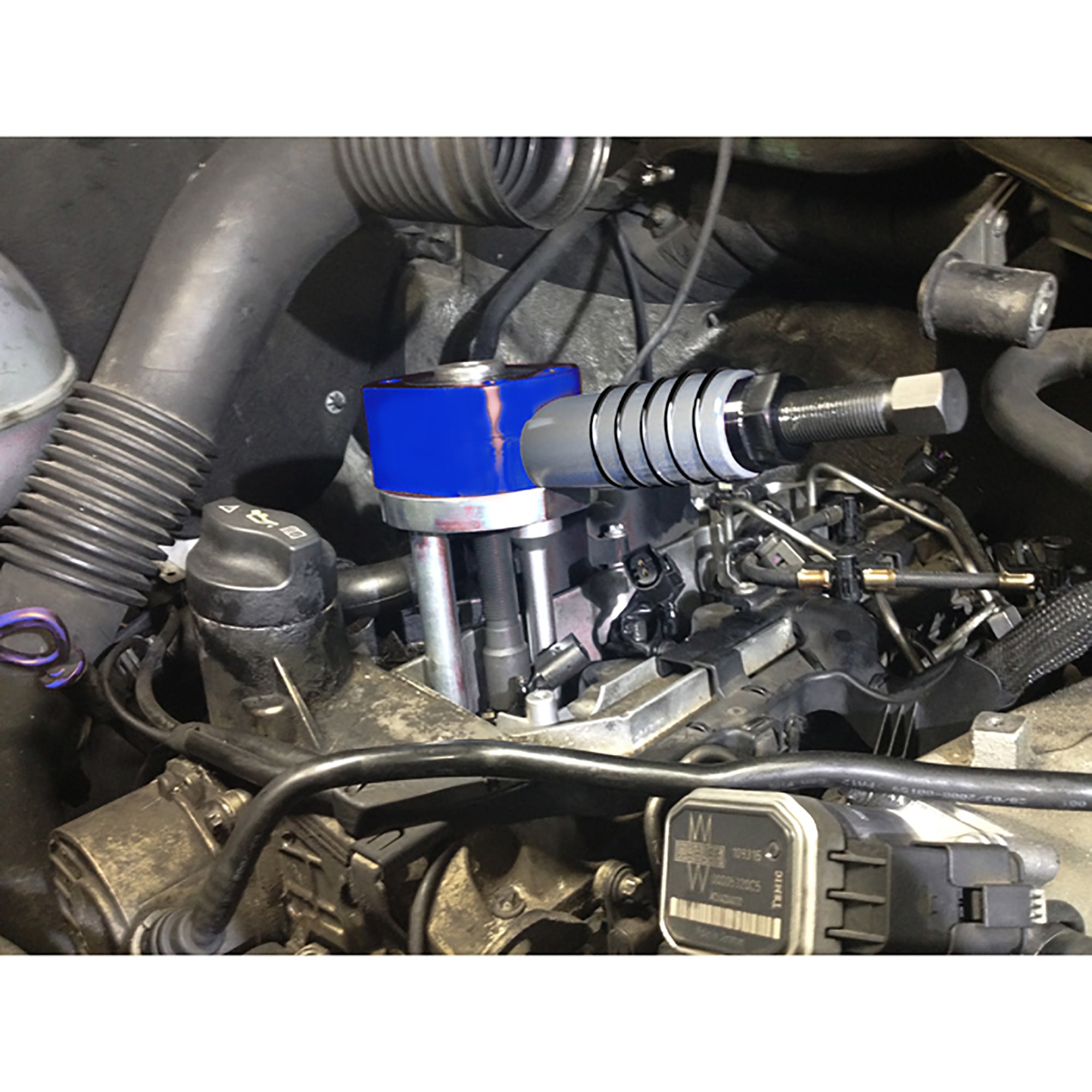

- Suitable for injector removal, hub installation, and general workshop use
- Compact design with multiple mounting points for secure operation
Specification
- Force: 12 Tonnes
- Stroke: 8 mm
- Body dimensions: 98 x 80 x 50(h) mm
- Pressure: max. 700 Bar
- Hole: Ø 21,5 mm
- Driving torque: 56Nm
- Weight: 1,65 Kg
- Grease temperature range of use: from -25°C to 80°C
- Material: aluminium
