Hub Puller Spares

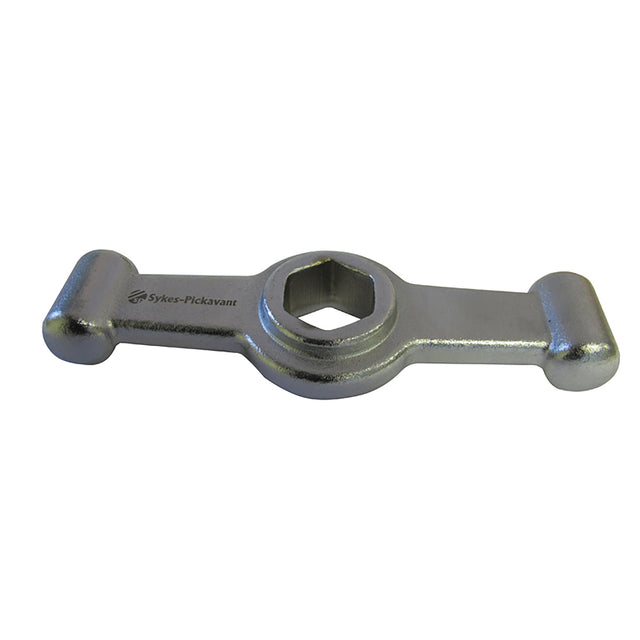

Use in conjunction with 12731100 Impact Force Screw - allows for greater force to be applied When used together, Shock handle (08251900) and Impact Force Screw (12731100) can convert 1500 series hydraulic pullers to mechanical. In addition the impact shock handle to screw has a sliding centre spindle which allows the operatorto strike the end when fully loaded. This assists the release of stubborn joints or taper fits.

Read more less

Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Suitable for use with   180000V2 - 12T Hydraulic Ram 12731100 - Impact Force Screw  08520900 - Slide Hammer Assembly with adaptor 08531270

Read more less

Slide Hammer Weight: 5Kg Thread: 5/8" UNF 18h Note: If using with 08520800 hub puller plate, 08531270 adaptor is required

Read more less

Allows 08520800 hub puller plate to be used with 08520900 slide hammer. Specifications Internal Thread - 5/8" x 18 tpi External Thread - 1 1/2" x 16 tpi

Read more less

M4 Adaptor for 09590000 Threaded Stud Extractor

Read more less

M5 Adaptor for 09590000 - Threaded Stud Extractor

Read more less

M6 Adaptor for 09590000 - Threaded Stud Extractor

Read more less

M8 Adaptor for 09590000 - Threaded Stud Extractor

Read more less

1/2" / 3/8" Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

1/2" / 5/8" Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

3/8" - M6 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

3/8" - M8 Adaptor for 09595000 M6 - M20 Threaded Stud Extractor

Read more less

3/8" - M10 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

5/8" - M12 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

5/8" - M14 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

5/8" - M16 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

5/8" - M18 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

5/8" - M20 Adaptor for 09595000 - M6 - M20 Threaded Stud Extractor

Read more less

Can be used in any SP Hub Puller in place of Hydraulic Ram or Slide Hammer (11/2” BSW thread) When used together, Shock handle (08251900) and Impact Force Screw (12731100) can convert 1500 series hydraulic rams to mechanical. In addition the impact shock handle to screw has a sliding centre spindle which allows the operator to strike the end when fully loaded. This assists the release of stubborn joints or taper fits.

Read more less

Spare leg for hub pulling system.

Read more less

340MM M22 X 2.5 & M22 X 1.5 Pulling Rod for 21027500 HGV Hub Puller Kit

Read more less

M22 X 2.5 Nut for 21027500 HGV Hub Puller Kit

Read more less

M18 X 1.5 Thread Adaptors for 21027500 HGV Hub Puller Kit

Read more less

M20 X 1.5 Thread Adaptors for 21027500 HGV Hub Puller Kit

Read more less

M22 X 1.5 Thread Adaptor for 21027500 HGV Hub Puller Kit

Read more less

M22 - 7/8 11BSF Thread Adaptors for for 21027500 HGV Hub Puller Kit

Read more less

M22 - 7/8 14UNF Thread Adaptors for 21027500 HGV Hub Puller Kit

Read more less

95mm Pressure Plate for 21027500 HGV Hub Puller Kit

Read more less

110mm Pressure Plate for for 21027500 HGV Hub Puller Kit

Read more less

90mm Pressure Plate for 21027500 HGV Hub Puller Kit

Read more less

Replacement beam for 21027500 - HGV Hub Puller Kit Length: 500mm

Read more less

Threaded Centre Rod for 21027500 HGV Hub Puller Kit

Read more less

The 21027600 Add-On Puller Set is the perfect companion to the 21027500 - HGV Hub Puller Kit, extending its functionality beyond hub removal. By converting the kit into a more conventional puller system, it unlocks a wider range of workshop applications, allowing technicians to tackle both internal and external pulling tasks with ease and confidence. Transforms the 21027500 KitDesigned to enhance the original HGV Hub Puller Kit, this add-on set allows it to be used as a standard puller, increasing versatility in everyday workshop tasks. Internal & External CapabilityEnables the puller to operate in both internal and external configurations, broadening its scope beyond hub extraction. Precision & StabilitySupplied with two pairs of setting sleeves that ensure equal leg extension. This guarantees even pulling force, better balance, and faster setup. Why You Need It Turn One Tool into ManyInstead of buying multiple pullers, the add-on converts the 21027500 into a truly multi-purpose system, suitable for a wider variety of removal jobs. Extend Workshop CapabilityFrom hubs to other heavy-duty components, the tool adapts quickly, offering the flexibility of a conventional puller whenever required. Time-Saving EfficiencyThe balanced design reduces setup time and ensures smooth, accurate pulling with less risk of component damage. Cost-Effective UpgradeA simple add-on that drastically expands the usability of your existing kit, making it a smart long-term investment.

Read more less

The mechanical properties, the shape and dimensioning for which they were designed, ensure that Govoni hydraulic cylinders have a field of use to the automotive industry as: Injector disassembly; Bearing, hub and silent block disassembly; Coaxial unlocking of very tight mechanical components. Equipped with 5 threaded bushes in order to fit the most relevant threaded bars on the market. Specifications Provides up to 12 tons of controlled hydraulic force Dimensions: 90 x 155 mm Stroke: 43 mm Pressure: max. 700 Bar Hole: 20 mm Connection: 3/" -18 NPT Mounting Thread: 2 3/4-16 UN Adaptors: M10/M12/M14/M16/M18   Full range of Govoni available - click to see the  Govoni Catalogue 2025 or Govoni Garage Equipment Catalogue 2025

Read more less

For driving out components and straightening jobs on bodywork with extra tough heavy-duty design and practical handles 8 tonne (approx.) maximum force Loosens even the tightest connections; pressed or rusted in / attached with a cone Suitable for removing injectors, wheel hubs, supporting joints etc. with relevant accessories Specifications: Weight: 9kg Length: 770mm Connection Thread: M18 x 1.5 Full range of Govoni available - click to see the  Govoni Catalogue 2025 or Govoni Garage Equipment Catalogue 2025

Read more less

Adaptor Set for Heavy Duty Slide Hammer Supplied with 4 x commonly used slide hammer adaptors  1 x system adaptor tool, M18 x 1.5 with mounting bore (jointed connection) for universal hooks, double extractor hooks, bow hooks, bodywork pull clamps etc. Suitable for Muller /Klann /KS /Pichler 1 x system adaptor tool, M18x1.5/1-1/2 inch x 16 for wheel hub puller. Suitable for Muller /KS /Pichler 1 x universal adaptor with ball joint, M18x1.5, for use between the slide hammer and the tool, enables work in hard-to-reach places. Suitable for all systems 1 x system adaptor tool, M18 x 1.5/M22x2.0, for wheel hub puller. Suitable for Facom Full range of Govoni available - click to see the  Govoni Catalogue 2025 or Govoni Garage Equipment Catalogue 2025

Read more less

For powerful expulsion of stuck components as well as for body straightening work. The new slide hammer version is filled with a steel shot. This prevents the weight from bouncing back against the abutment. The impact intensity is thus increased because the full impact force is transmitted to the component to be machined. This version is also very gentle on the joints and allows fatigue-free working. The tool is modular and can be split and used as 1.5 kg sliding hammer. The slide hammer is filled with a steel shot. The range of applications can be increased as desired through the optional purchase of additional accessories!  Applications Removal of injectors/wheel hubs/ suspension joints Straightening and reverse deformation of body parts etc.  Technical data Weight 9 kg Total length 770 mm Connection “ Thread M18x1,5; M22x2,0 Full range of Govoni available - click to see the  Govoni Catalogue 2025 or Govoni Garage Equipment Catalogue 2025

Read more less
