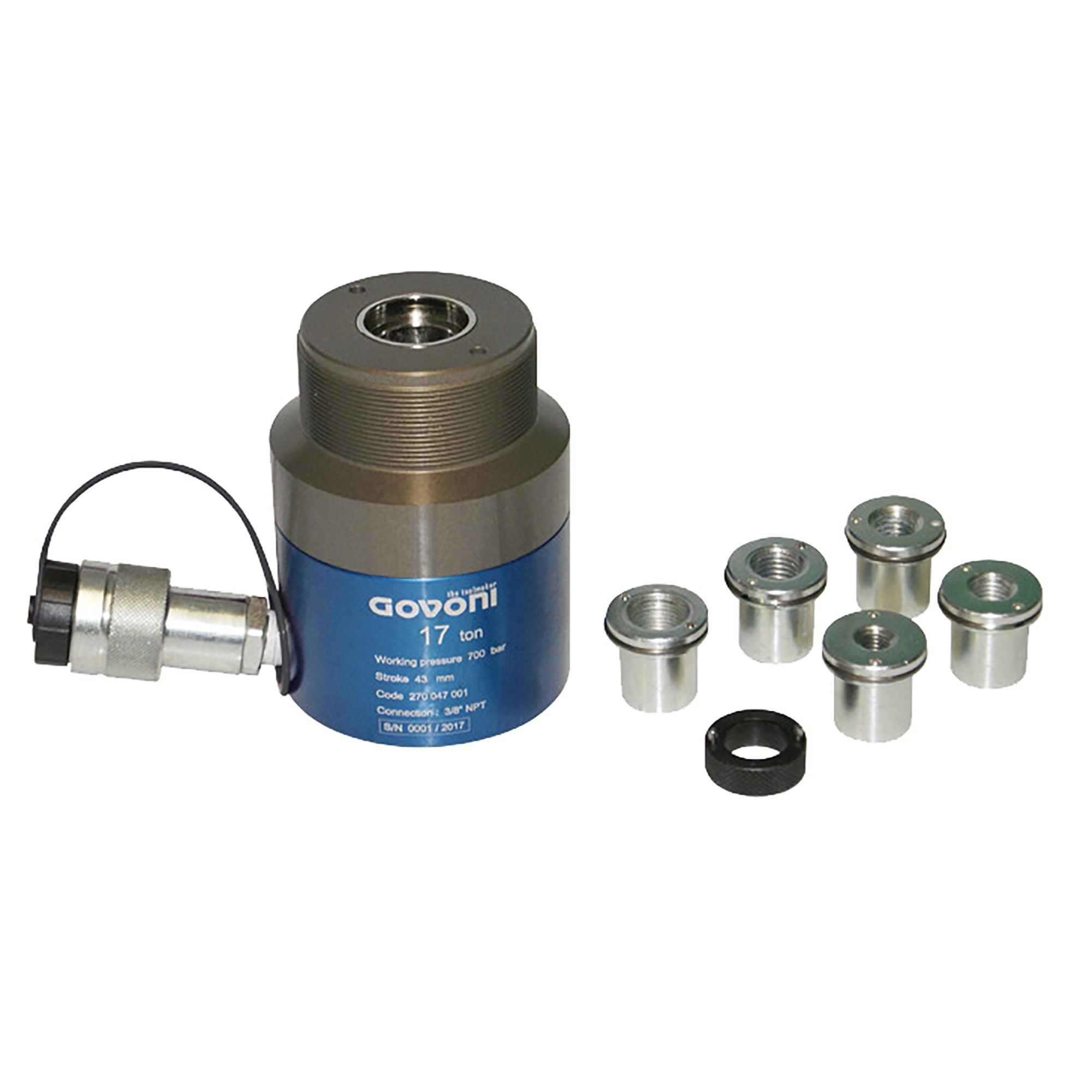

GO1061 - Hydraulic Cylinder - Aluminium 17 Tonne

Description

GO1061 - Hydraulic Cylinder - Aluminium 17 Tonne

Heavy-duty hydraulic cylinder designed to deliver increased pulling force for demanding extraction and installation tasks. Suitable for injector removal, bearing and hub work, and releasing tightly seized components, it provides controlled hydraulic power in a lightweight aluminium body.

Key Features

  • 17 tonne hydraulic force for high-load applications
  • Suitable for injector, bearing, hub and silent block operations
  • Ideal for releasing very tight or seized mechanical components
  • Lightweight aluminium construction for improved handling
  • Supplied with threaded adaptors (M10, M12, M14, M16, M18) for versatility
  • 43 mm stroke for extended working range
Specifications
  • Force: 17 Tonnes
  • Dimensions: 90 x 155 mm
  • Stroke: 43 mm
  • Pressure: max. 700 Bar
  • Hole: 20 mm

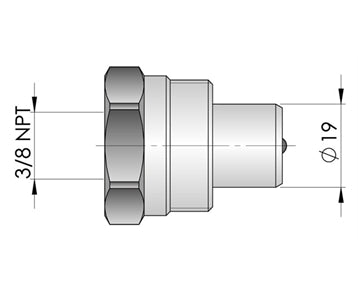

  • Connection: 3/" -18 NPT
  • Mounting Thread: 2 3/4"-16 UN

Full range of Govoni available - click to see the  Govoni Catalogue 2025 or Govoni Garage Equipment Catalogue 2025

Product form

GO1061 - Hydraulic Cylinder - Aluminium 17 Tonne Heavy-duty hydraulic cylinder designed to deliver increased pulling force for demanding extraction... Read more

SKU: GO1061

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

DownloadDownload

Description

GO1061 - Hydraulic Cylinder - Aluminium 17 Tonne

Heavy-duty hydraulic cylinder designed to deliver increased pulling force for demanding extraction and installation tasks. Suitable for injector removal, bearing and hub work, and releasing tightly seized components, it provides controlled hydraulic power in a lightweight aluminium body.

Key Features

  • 17 tonne hydraulic force for high-load applications
  • Suitable for injector, bearing, hub and silent block operations
  • Ideal for releasing very tight or seized mechanical components
  • Lightweight aluminium construction for improved handling
  • Supplied with threaded adaptors (M10, M12, M14, M16, M18) for versatility
  • 43 mm stroke for extended working range
Specifications
  • Force: 17 Tonnes
  • Dimensions: 90 x 155 mm
  • Stroke: 43 mm
  • Pressure: max. 700 Bar
  • Hole: 20 mm
  • Connection: 3/" -18 NPT
  • Mounting Thread: 2 3/4"-16 UN

Full range of Govoni available - click to see the  Govoni Catalogue 2025 or Govoni Garage Equipment Catalogue 2025
